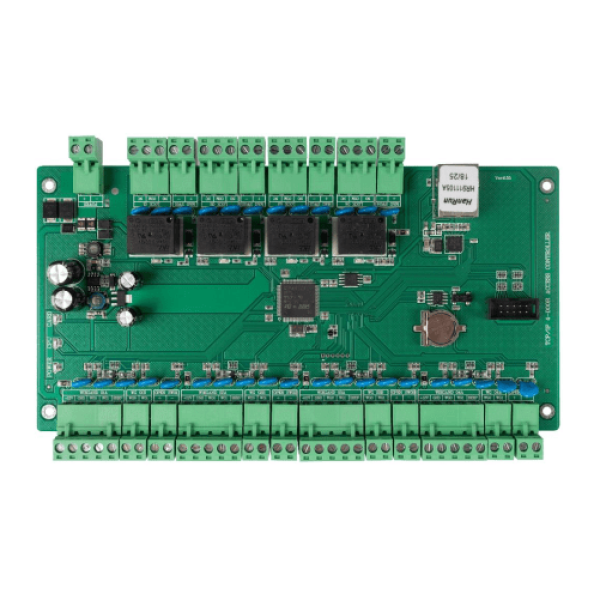

C24 Access Controller

Model No: C24

4-door access control panel

The C24 Access Controller is a 4-door access control panel capable of managing up to 1,000 users across four independent entry points. Supporting multiple authentication modes including fingerprint, RFID card, and PIN, it offers advanced features such as interlock, anti-passback, and first-card door-normally-open. Suitable for medium-sized offices and buildings.

TCP/IP

RS485

Technical Specifications

Capacity & Storage

Door Capacity

4 doors

Card Capacity

30,000

Transaction Records

200,000

Access & Security

Reader Ports

8 Wiegand reader ports

Input

16 alarm inputs

Output

8 relay outputs

Tamper Detection

Yes

Connectivity

Communication

TCP/IP, RS485

Power

Power Supply

DC 12V / 5A

Operating Temperature

-10°C to 55°C

Physical

Dimensions

260 × 180 × 55 mm

C24 Access Controller

Reliable | Affordable | Made for India

WhatsApp Us Get a Quote

Downloads & Resources

Catalogue

Device Introduction

Connection Diagram
