C332 Access Controller

Model No: C332

32-door access control panel

Enquire on WhatsApp Get a Quote
C332 Access Controller
C332 Access Controller

C332 Access Controller

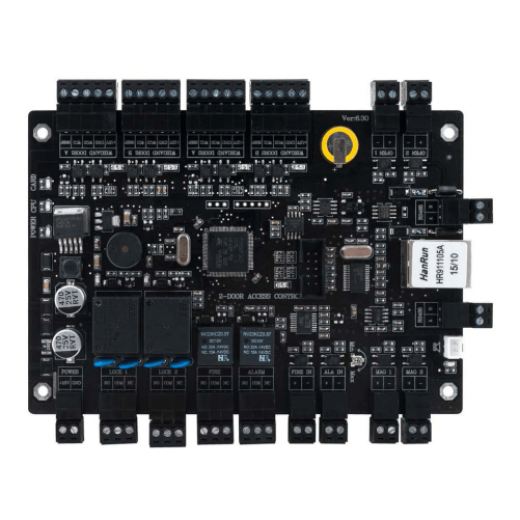

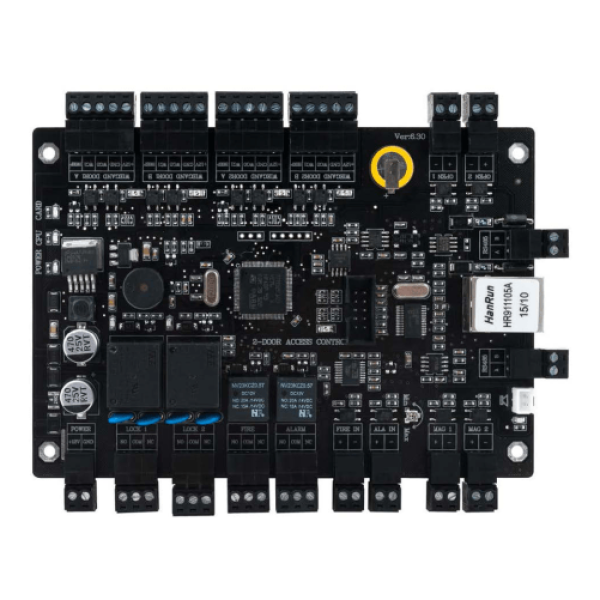

The C332 is a network-based multi-door access controller supporting up to 30,000 cardholders and 100,000 event records. Designed for enterprise access control systems, it manages up to 32 doors across a TCP/IP network with centralised management software. Features include advanced anti-passback, time-zone grouping, and alarm integration.
TCP/IP
RS485

Technical Specifications

Capacity & Storage

Door Capacity

2 doors

Card Capacity

10,000

Transaction Records

100,000

Access & Security

Reader Ports

2 Wiegand reader ports

Input

4 alarm inputs

Output

2 relay outputs

Connectivity

Communication

TCP/IP, RS485

Power

Power Supply

DC 12V / 3A

Operating Temperature

-10°C to 55°C

Physical

Dimensions

200 × 140 × 40 mm

C332 Access Controller

C332 Access Controller

Reliable  |  Affordable  |  Made for India

WhatsApp Us Get a Quote

Downloads & Resources

Catalogue
Device Introduction
Connection Diagram
