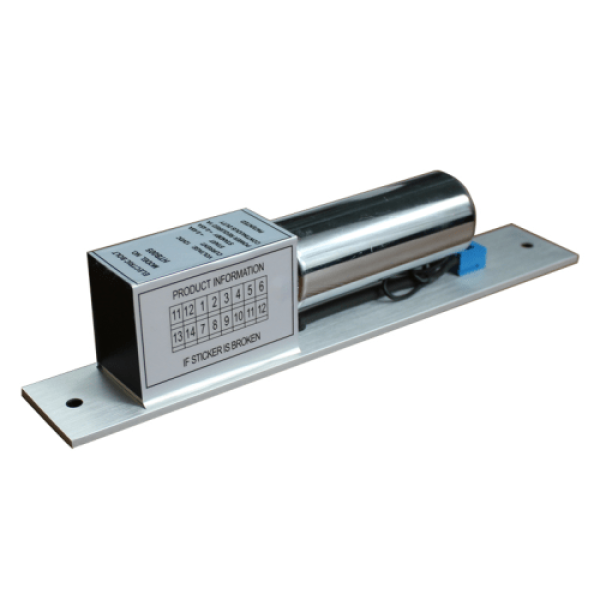

Bolt Lock BL-3300-AF

Model No: BL 3300 AF

Drop bolt lock system for glass and wooden doors

Enquire on WhatsApp Get a Quote
Bolt Lock BL-3300-AF
Bolt Lock BL-3300-AF

Bolt Lock BL-3300-AF

The BL-3300-AF Drop Bolt Lock is a concealed bolt lock designed for frameless glass doors and aluminium frame doors. The bolt drops vertically into a strike plate on the floor, providing secure locking without visible hardware on the door face. Fail-secure operation ensures the door remains locked during power failure.
Lock Type
Operating Voltage
Current Draw
Bolt Extension

Technical Specifications

Physical

Lock Type

Electric bolt (fail-secure)

Bolt Extension

16 mm

Material

Zinc alloy

Dimensions

120 × 35 × 28 mm

Power

Operating Voltage

DC 12V / 24V

Current Draw

500mA @ 12V

Operating Temperature

-10°C to 55°C

Display & Interface

LED Indicator

Yes

General

Certification

CE

Bolt Lock BL-3300-AF

Bolt Lock BL-3300-AF

Reliable  |  Affordable  |  Made for India
