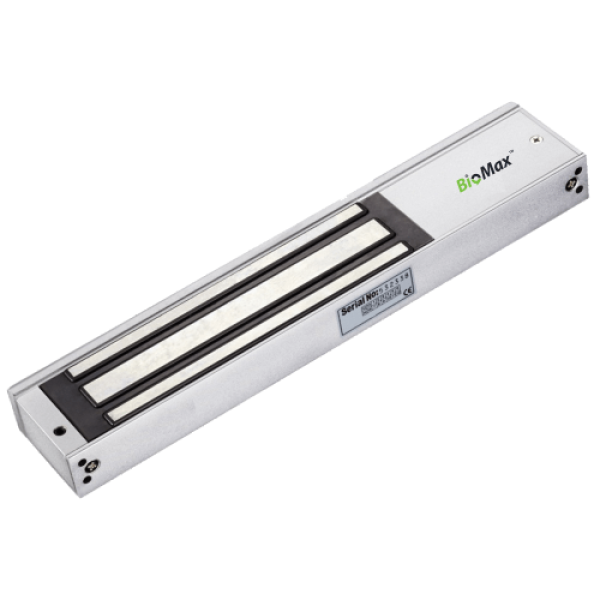

EM Lock with Feedback
Model No: EM Lock FB
Electronic magnetic lock with door status feedback
EM Lock with Feedback
Technical Specifications
Turnstile & Gate
Holding Force
280 kg / 600 lbs
Power
Operating Voltage
DC 12V / 24V
Current Draw
320mA @ 12V / 160mA @ 24V
Operating Temperature
-10°C to 55°C
Physical
Lock Type
Fail-safe (power to lock)
Material
Aluminium alloy
Dimensions
185 × 40 × 26 mm
Display & Interface
LED Indicator
Yes
Access & Security
Door Status Sensor
Yes — feedback signal
General
Certification
CE, UL
