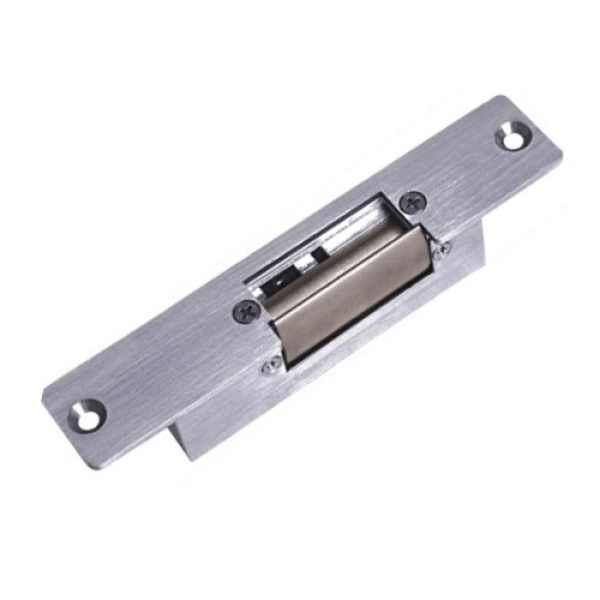

Strike Lock SL-150A
Model No: SL 150A
Strike lock for wooden and metal door frames
Strike Lock SL-150A
The SL-150A Strike Lock is an electric strike designed to replace standard mechanical door strikes in wooden or metal door frames. When energised, the hinged keeper retracts to allow the door latch to pass through; when de-energised, it holds the latch securely. Supports both fail-safe and fail-secure configurations.
Technical Specifications
Physical
Lock Type
Electric strike (fail-safe / fail-secure selectable)
Material
Stainless steel
Dimensions
130 × 25 × 32 mm
Power
Operating Voltage
DC 12V / 24V
Current Draw
300mA @ 12V
Operating Temperature
-10°C to 55°C
General
Certification
CE
