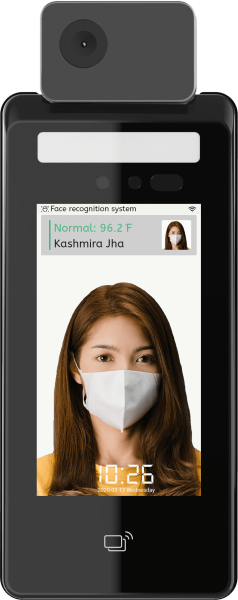

Speedface 5 THRL
Model No: Speedface 5 THRL
AI face recognition with thermal screening
Speedface 5 THRL
The SpeedFace 5 THRL is an AI-powered face recognition terminal with integrated temperature measurement and liveness detection. Using deep learning algorithms and an IR array sensor, it delivers fast and accurate recognition while screening for elevated body temperature — ideal for health-aware access control environments.
Specifications
- Face Capacity: 50,000
- Max Users: 50,000
- Log Capacity: 2,00,000
- Liveness Detection: Supported
- Temperature Sensor: IR Array Sensor
- Stranger Detection: Supported
- Recognition Distance Configuration: Supported
- Remote Update: Supported
- Deployment: Public network, LAN
- Display: 5" IPS LCD touch screen
- Resolution: 854×480
- OS: Linux
- CPU: Dual-core ARM Cortex
- Relay Output: 1-way (DOOR_NO, DOOR_COM, DOOR_NC)
- Network Interface: 1-way Ethernet (RJ45, 100M)
- Wi-Fi: IEEE 802.11b/g/n
- Wiegand Output: Yes
- Power: DC 12V/2A
- Device Working Temperature: -10°C~50°C
- Temperature Measurement Distance: 30cm~120cm
- Temperature Measurement Range: 35.5°C~42°C (95.9°F~107.6°F)
- Working Humidity: 10%~90%
- Dimensions: 216×90×25mm
Technical Specifications
Capacity & Storage
Face Capacity
6,000
Fingerprint Capacity
10,000
Card Capacity
10,000
Transaction Records
500,000
Connectivity
Communication
TCP/IP, WiFi, USB
Display & Interface
Display
5" HD IPS Touch Screen
Camera
Dual infrared + visible light
Biometrics
Verification Speed
< 0.3 second
Identification Methods
Face, Fingerprint, Palm, RFID Card, Password
Temperature Screening
Yes — ±0.3°C accuracy
Mask Detection
Yes
Liveness Detection
Yes
Power
Power Supply
DC 12V / 3A
Operating Temperature
-10°C to 60°C
Physical
Dimensions
235 × 195 × 65 mm
