N-BM22 FC

Model No: N-BM22 FC

Lift up Style Quotient face recognition machine

N-BM22 FC

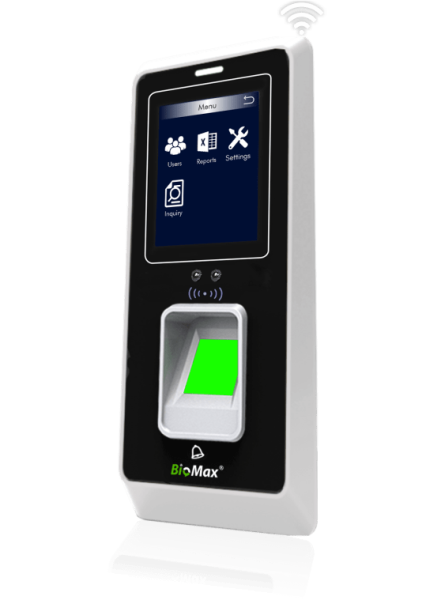

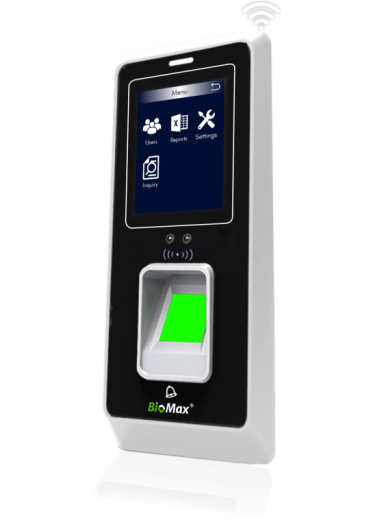

N-BM22 FC is a stylish vertical face recognition terminal with a touchscreen and silver-accented edges designed to complement modern office interiors. It supports Fingerprint and RFID Card verification with a capacity of 10,000 users and 200,000 logs, multiple authentication modes, anti-passback, and access control. Wi-Fi and LAN connectivity with USB for log and firmware updates. Compatible with FR12 fingerprint reader and Wiegand card reader. Supports work codes, check-in/check-out status, tamper alerts, and alarm functions.

Face

Fingerprint

RFID Card

Password

TCP/IP

WiFi

Technical Specifications

Capacity & Storage

Face Capacity

1,500

Fingerprint Capacity

3,000

Card Capacity

10,000

Transaction Records

200,000

Connectivity

Communication

TCP/IP, WiFi, USB

WiFi

802.11 b/g/n

Display & Interface

Display

4.3" TFT Color Touch Screen

Biometrics

Verification Speed

< 1 second

Identification Methods

Face, Fingerprint, RFID Card, Password

Power

Power Supply

DC 12V / 3A

Operating Temperature

-10°C to 50°C

Physical

Dimensions

210 × 155 × 50 mm

N-BM22 FC

Reliable | Affordable | Made for India

WhatsApp Us Get a Quote

Downloads & Resources

Catalogue

Device Introduction

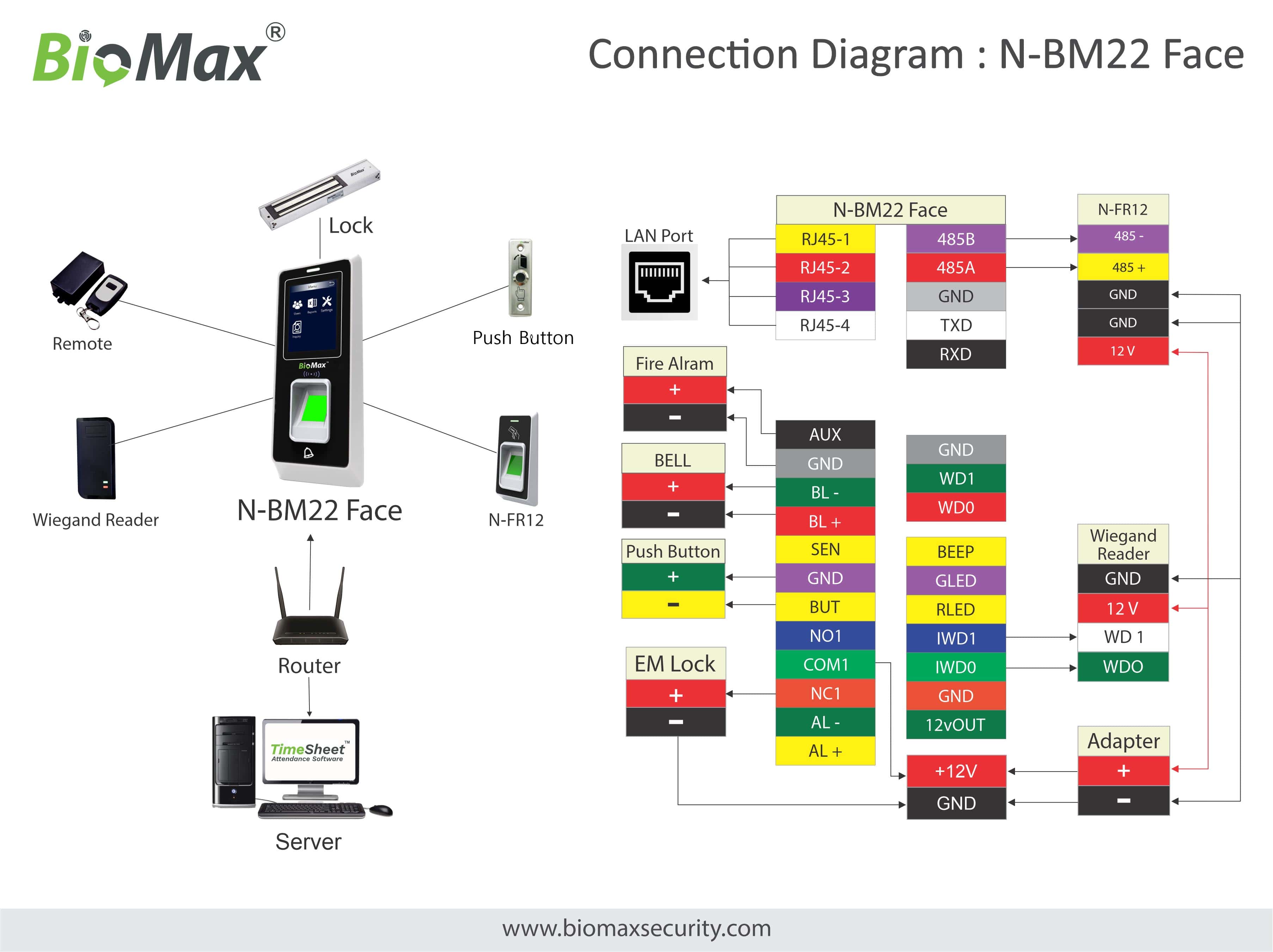

Connection Diagram
