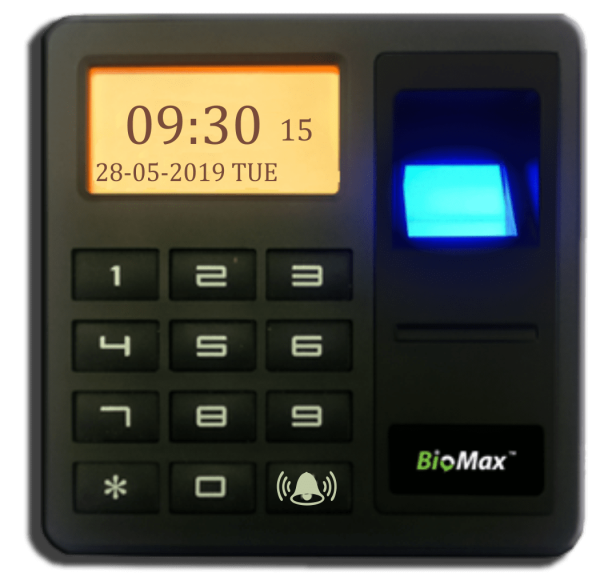

N-Access10
N–Access10 is the latest access control system built to fit in smaller places and deliver maximum security to your premises. It offers multiple modes of verification — Fingerprint, RFID card, Password. You can verify users by dual verify mode which is either Fingerprint and RFID card, or Fingerprint and password. N-Access10 supports up to 500 Fingerprints and 500 RFID cards, more than enough for any organization.
This device has a special function of ADMIN with 2 passwords for modification in device settings — very safe and secure. Connect Electromagnetic Lock, Bolt or Strike lock with this device to suit your door type. A push button on the inner side of the room allows opening/closing the door in emergency situations. Inbuilt bell facility allows connecting and operating a bell from the device. An ideal and reliable device for employers who need to control access to any prohibited area.
Specifications
- Fingerprint Capacity: 500
- Card Capacity: 500 (non-standard)
- Code Count (Password): 2
- Display: Black-white LCD screen
- Verification Mode: Fingerprint, Card, Password
- FAR: <= 0.0001%
- FRR: <= 0.01%
- Door Controlled: 1
- Linking Mode: Offline
- Relay: Yes
- Operating Temperature: 0°C ~ 50°C
- Power Source: 12VDC / 1.5A
- Dimension: 86 × 86 × 26 mm
Technical Specifications
Capacity & Storage
Fingerprint Capacity
3,000
Card Capacity
10,000
Transaction Records
100,000
Connectivity
Communication
TCP/IP, RS485, Wiegand, USB
Display & Interface
Display
2.8" TFT Color Screen
Biometrics
Verification Speed
< 1 second
Fingerprint Sensor
Optical
Identification Methods
Fingerprint, RFID Card, Password
Power
Power Supply
DC 12V / 3A
Operating Temperature
-10°C to 60°C
Physical
Dimensions
195 × 75 × 42 mm
Access & Security
Access Control
Door relay, alarm, exit button
