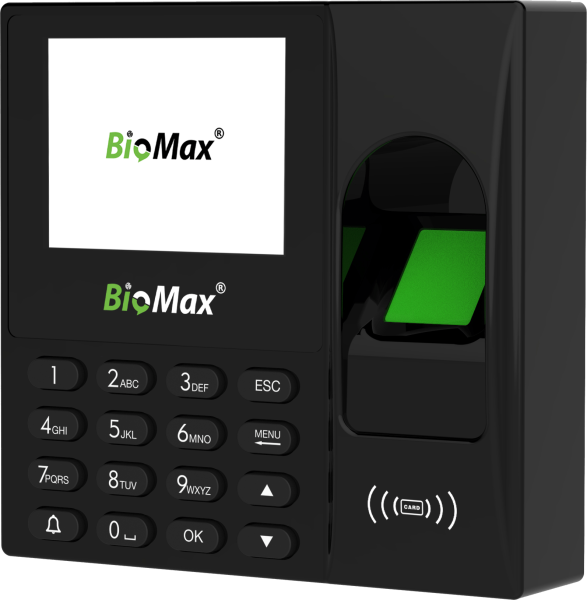

N-Access10 Pro
Model No: N-Access10 Pro
Advanced fingerprint access control system
N-Access10 Pro
N–Access10 Pro is the latest access control device built to fit in smaller places and deliver maximum security to your premises. It offers multiple modes of verification — Fingerprint, RFID card, Password. Users can verify by dual verify mode: either Fingerprint and RFID card, or Fingerprint and password. N-Access10 Pro supports up to 3000 Fingerprints and 1000 RFID cards.
This device has a special ADMIN function with 2 passwords for modification in device settings. Connect Electromagnetic Lock, Bolt or Strike lock with this device to suit your door type. A push button on the inner side allows opening/closing the door in emergency situations. Inbuilt bell facility allows connecting and operating a bell directly from the device.
Specifications
- Fingerprint Capacity: 3000
- Card Capacity: 1000
- Password: 1000
- Display: 2.4" TFT LCD Color Screen
- Verification Mode: Fingerprint, Card, Password
- FAR: <= 0.0001%
- FRR: <= 0.01%
- Relay: Yes
- Operating Temperature: 0°C ~ 45°C
- Power Source: 12VDC / 2A
- Dimension: 100.24 × 105.2 × 29.4 mm
Technical Specifications
Capacity & Storage
Fingerprint Capacity
5,000
Card Capacity
10,000
Transaction Records
200,000
Connectivity
Communication
TCP/IP, RS485, Wiegand, USB
Display & Interface
Display
3.5" TFT Color Touch Screen
Biometrics
Verification Speed
< 1 second
Fingerprint Sensor
Optical
Identification Methods
Fingerprint, RFID Card, Password
Power
Power Supply
DC 12V / 3A
Operating Temperature
-10°C to 60°C
Physical
Dimensions
205 × 80 × 46 mm
Access & Security
Access Control
Door relay, alarm, exit button
