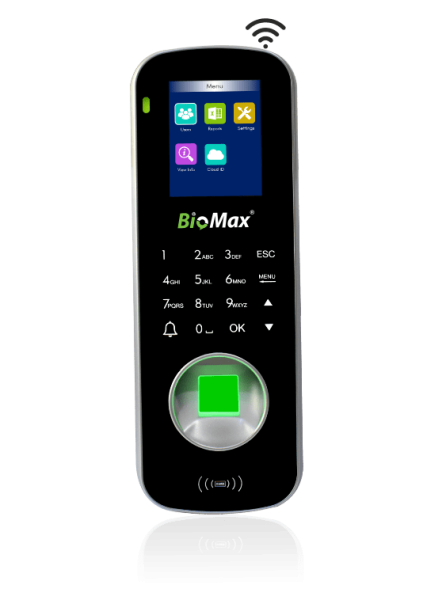

N-BioAccess

Gracefully Engineered N-BioAccess delivers the best where it is about securing the premises with a keen look on the accessing data user. This fully loaded device does not miss any option a user requires to secure its area. Specially designed to provide stability in working as well as adding a style quotient to your premises. The vertical design fits perfectly into the interior of your premises. User gets an on-device feather touch keypad function in this model. Style is the main factor here — vertical design, silver curve along the edges and fits into smaller places.

It holds a cutting edge processor that never lets the User interface lag. LINUX-based OS leads an unmatchable user experience. Wi-Fi connectivity helps user to connect the device wirelessly to the software. USB function to take offline data using a pen drive as well as transfer users and data from one to another device. N-BioAccess can be used as Access Control with Fingerprint and Card reader, supporting RS485 reader, Wiegand reader, Exit switch, No Touch sensor, Wireless Remote etc. Anti-Pass back feature ensures complete transparency of persons present inside.

Specifications

• Fingerprint Capacity: 10,000
• Card Capacity: 10,000
• Password Capacity: 10,000
• Max. User: 10,000
• Log Capacity: 1,50,000
• Communication: TCP/IP, Wi-Fi, RS485, USB Host
• Push Data: Yes
• OS: Linux
• Display: 2.8" TFT LCD color screen
• Voice: 16-bit Hi-Fi voice & sound indication
• Language: English
• FAR: 0.00001%
• FRR: 0.001%
• Sensor Type: 500 DPI
• Identification Mode: Fingerprint, Card, PIN
• Wiegand: Input/Output
• Relay: Yes
• Access Control Support: RS485 Reader, Wiegand Reader, Remote, Push Button, No Touch
• Operating Temperature: 0°C ~ 50°C
• Power: 12V DC / 2A
• Dimension (L×H×W): 75 × 200 × 35 mm
