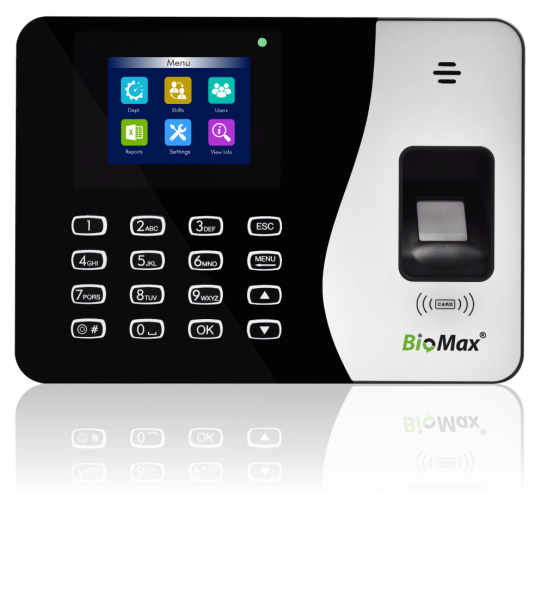

N-BM20
Model No: N-BM20
Built As Basic fingerprint time attendance machine
N-BM20
N-BM20+ID Pro is the solution for small groups in need of a Biometric Solution that is efficient and budget friendly. The right CPU gives the user the required speed in everyday functions. Internal Battery Backup provides an ample source of power within the device. Advanced fingerprint sensor can verify ink, mehndi or any colour, even rough or dry fingers. N-BM20+ID Pro follows LAN cable based network connectivity and also has USB medium for manual data log fetching and SSR Reports.
This basic but efficient device provides connectivity of multiple branches to a head office using PUSH Data Technology. It offers both Fingerprint verification and RFID Card attendance verification for flexibility. N-BM20+ID Pro has proven great performance under an economic budget.
Specifications
- Fingerprint Capacity: 1000
- Card Capacity: 1000
- Log Capacity: 1,50,000
- Password Capacity: 1000
- Max. User: 1000
- Communication: TCP/IP, USB Host
- Push Data: Yes
- OS: Linux
- Display: 2.4" TFT LCD color screen 320×240 pixel
- Voice: 16-bit Hi-Fi voice & sound indication
- Language: English
- FAR: 0.00001%
- FRR: 0.001%
- Sensor Type: 500 DPI
- Identification Mode: Fingerprint, Card, PIN
- Inbuilt Battery: Yes
- Operating Temperature: 0°C ~ 50°C
- Power: DC 5V/2A
- Dimension (L×H×W): 180 × 130 × 35 mm
Technical Specifications
Capacity & Storage
Fingerprint Capacity
3,000
Card Capacity
10,000
Transaction Records
100,000
Connectivity
Communication
TCP/IP, USB
Display & Interface
Display
2.8" TFT Color Screen
Biometrics
Verification Speed
< 1 second
Fingerprint Sensor
Optical
Identification Methods
Fingerprint, RFID Card, Password
Power
Power Supply
DC 12V / 3A
Operating Temperature
-10°C to 60°C
Physical
Dimensions
195 × 75 × 42 mm
