N-BM22
Model No: N-BM22
Lift up Style Quotient fingerprint attendance machine
N-BM22

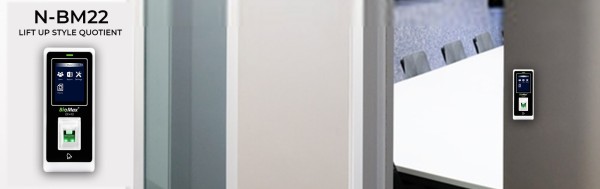

N-BM22 tops the list in matter of style and decency it adds to your place. This device consists of the looks, features and performance a company needs to organize attendance. A device specially designed to provide stability in terms of working as well as adding a style quotient to your premises. The vertical design, silver curve along the edges and fits perfectly into your interior. N-BM22 is Finger & card acceptance device with a capacity of 10,000 for both, and high Log capacity of 2,00,000.
Multiple Authentication Enrollment can be done with Fingerprint, RFID Card & Password. Keep your premises secure with its potent access control feature. It can be configured with N-FR12 Reader for Fingerprint scan & Wiegand reader for card scan with Anti-Pass back facility. Device has a best functionality for controlling the lock system, user can set accessing time zone and enable Anti-Passback. Temper alert can be set for the device, giving better security to clients. N-BM22 supports status functions like Check In/Check Out, Break IN/OUT and Work code options for canteen, break, OT and other purposes.
Specifications
- Fingerprint Capacity: 10,000
- Card Capacity: 10,000
- Log Capacity: 2,00,000
- Password Capacity: 10,000
- Max. User: 10,000
- Processor: 1 GHz
- Communication: TCP/IP, Wi-Fi, RS485, USB Host & Client
- Push Data: Yes
- OS: Linux
- Display: 2.8" TFT LCD color screen
- Voice: 16-bit Hi-Fi voice & sound indication
- Language: English
- FAR: 0.00001%
- FRR: 0.001%
- Sensor Type: 500 DPI
- Identification Mode: Fingerprint, Card, PIN
- Wiegand: Input/Output
- Relay: Yes
- Access Control Support: N-FR12, KR26E, Remote, Push Button, No Touch
- Operating Temperature: 0°C ~ 50°C
- Power: 12V DC / 2A
- Dimension: 190 × 82 × 30 mm
Technical Specifications
Capacity & Storage
Fingerprint Capacity
3,000
Card Capacity
10,000
Transaction Records
100,000
Connectivity
Communication
TCP/IP, WiFi, USB
WiFi
802.11 b/g/n
Display & Interface
Display
2.8" TFT Color Screen
Biometrics
Verification Speed
< 1 second
Fingerprint Sensor
Optical
Identification Methods
Fingerprint, RFID Card, Password
Power
Power Supply
DC 12V / 3A
Operating Temperature
-10°C to 60°C
Physical
Dimensions
195 × 75 × 42 mm
