N-BM300 W
Model No: N-BM300 W
Size Matters — compact fingerprint attendance machine
N-BM300 W

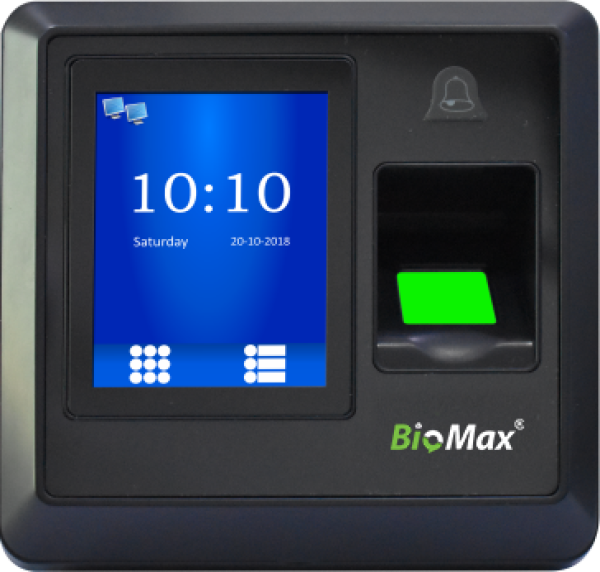

For those who believe size does matter, N-BM300W is the answer. Rigid construction and style are the main factors that make this device popular, whether you install it at your office, in a forklift, or on a bus — it fits most places. Every feature is stuffed inside this little marvel to meet user necessities. The 2.8 inch Touchscreen LCD makes this model elegant, and the charcoal black body adds style quotient to your premises. Users get a bell function key on the device for unauthorized persons to inform security personnel.
A powerful sensor verifies multiple types of fingers with same accuracy — mehndi, color, ink, even rough dry fingers. N-BM300W offers both Wi-Fi (wireless) & TCP/IP protocol (LAN) as communication options. USB function is available for data transfer where internet is not available. PUSH data technology centralizes data to head office. Supports Wiegand Reader, Exit switch, No Touch sensor, Wireless Remote etc.
Specifications
- Fingerprint Capacity: 3000
- Card Capacity: 3000
- Log Capacity: 1,50,000
- Password Capacity: 3000
- Communication: Wi-Fi, TCP/IP, USB (host and slave)
- Push Data: Yes (Optional)
- LCD: 2.8" TFT color screen
- Voice: 16-bit Hi-Fi voice & sound indication
- Language: English
- FAR: 0.00001%
- FRR: 0.001%
- Sensor Type: 500 DPI
- Identification Mode: Fingerprint, Card, PIN
- Wiegand Input/Output: Yes
- Relay: 2 Relay
- Access Control: 255 Time Zone, Multi-identification, Duress mode, Anti-passback
- Operating Temperature: 0°C ~ 50°C
- Power: 12V DC / 2A
- Dimension (L×H×W): 150 × 150 × 35 mm
Technical Specifications
Capacity & Storage
Fingerprint Capacity
10,000
Card Capacity
10,000
Transaction Records
200,000
Connectivity
Communication
TCP/IP, WiFi, USB
WiFi
802.11 b/g/n
Display & Interface
Display
3.5" TFT Color Touch Screen
Biometrics
Verification Speed
< 1 second
Fingerprint Sensor
Optical
Identification Methods
Fingerprint, RFID Card, Password
Power
Power Supply
DC 12V / 3A
Operating Temperature
-10°C to 60°C
Physical
Dimensions
205 × 80 × 46 mm
