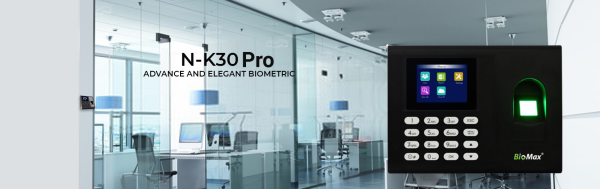

N-K30 Pro
Model No: N-K30 Pro
Advance and Elegant biometric attendance machine
N-K30 Pro
N-K30 Pro presents a user with all three in one — Performance, Budgetary and Technology. Crafted with precision, this model combines your requirements for Attendance & Access Control into a simple yet powerful device. A simpler yet high performance processor chipset provides speedier calculative performance. Linux based flexible operating system gives a friendlier user interface. BioMax's Advance Finger Sensor verifies your finger in multiple states — mehndi, color, roughness or dryness don't affect accuracy.
LAN-based communication connects to attendance software, and USB function is available for fetching data locally. Using a central server, multiple branches can be connected into one. The Access Control feature locks your door to permit entry and exit — works with wooden, metal, and glass doors using BioMax locks.
Specifications
- Fingerprint Capacity: 2,000
- Card Capacity: 2,000
- User Capacity: 2,000
- Log Capacity: 1,50,000
- Password Capacity: 2,000
- OS: Linux
- Communication: TCP/IP, USB Host
- Push Data: Yes
- Display: 2.4" TFT LCD Color Screen (320×240)
- Voice: 16-bit Hi-Fi voice & sound indication
- Language: English
- FAR: 0.00001%
- FRR: 0.001%
- Sensor: 500 DPI
- Identification: Fingerprint, Card, PIN
- Access Control: Remote, Push Button, No Touch
- Relay: Yes
- Operating Temperature: 0°C ~ 50°C
- Power: 12V DC / 2A
- Dimensions: 160 × 140 × 65 mm
Technical Specifications
Capacity & Storage
Fingerprint Capacity
3,000
Card Capacity
10,000
Transaction Records
100,000
Connectivity
Communication
TCP/IP, USB
Display & Interface
Display
2.8" TFT Color Screen
Biometrics
Verification Speed
< 1 second
Fingerprint Sensor
Optical
Identification Methods
Fingerprint, RFID Card, Password
Power
Power Supply
DC 12V / 3A
Operating Temperature
-10°C to 60°C
Physical
Dimensions
195 × 75 × 42 mm
