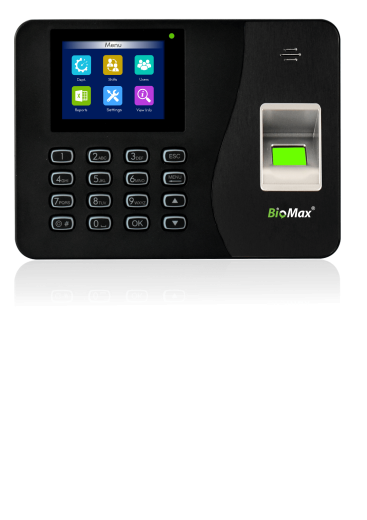

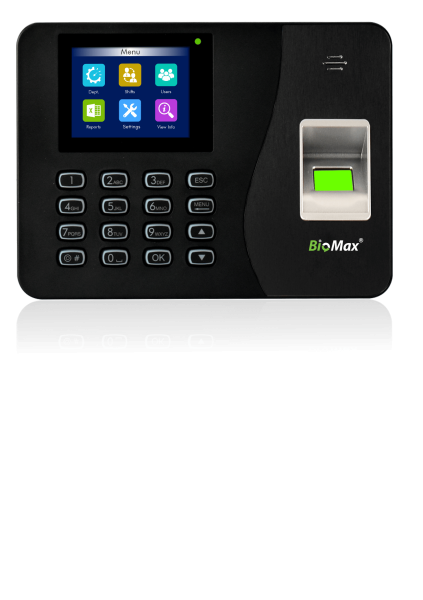

N-WL20
Strangled by the cord? The N-WL20 uses wireless WiFi technology to communicate with biometric software. No need to worry about LAN cabling — just connect your WiFi hotspot through a mobile or router and WL20 transfers attendance data automatically. Unique design with shady curves adds a decent look to your premises, made with robust durable material.
The advance processor makes daily functions — modifying settings, adding and modifying users — simple and fast. For locations without WiFi, the N-WL20 also supports USB for manual data log fetching. BioMax quality fingerprint sensor verifies ink, mehndi, coloured, rough, and dry fingers reliably.
Specifications
- Fingerprint Capacity: 1,000
- User Capacity: 1,000
- Log Capacity: 1,50,000
- Password Capacity: 1,000
- Communication: WiFi, USB Host
- Push Data: Yes
- OS: Linux
- Display: 2.4" TFT LCD Color Screen (320×240)
- Voice: 16-bit Hi-Fi voice & sound indication
- Language: English
- FAR: 0.00001%
- FRR: 0.001%
- Sensor: 500 DPI
- Identification: Fingerprint, PIN
- Software: Desktop, Web, Cloud (SSR optional)
- Operating Temperature: 0°C ~ 50°C
- Power: 5V DC / 1A
- Dimensions: 180 × 130 × 35 mm
Technical Specifications
Capacity & Storage
Fingerprint Capacity
3,000
Card Capacity
10,000
Transaction Records
100,000
Connectivity
Communication
TCP/IP, WiFi, USB
WiFi
802.11 b/g/n
Display & Interface
Display
2.8" TFT Color Screen
Biometrics
Verification Speed
< 1 second
Fingerprint Sensor
Optical
Identification Methods
Fingerprint, RFID Card, Password
Power
Power Supply
DC 12V / 3A
Operating Temperature
-10°C to 60°C
Physical
Dimensions
195 × 75 × 42 mm
