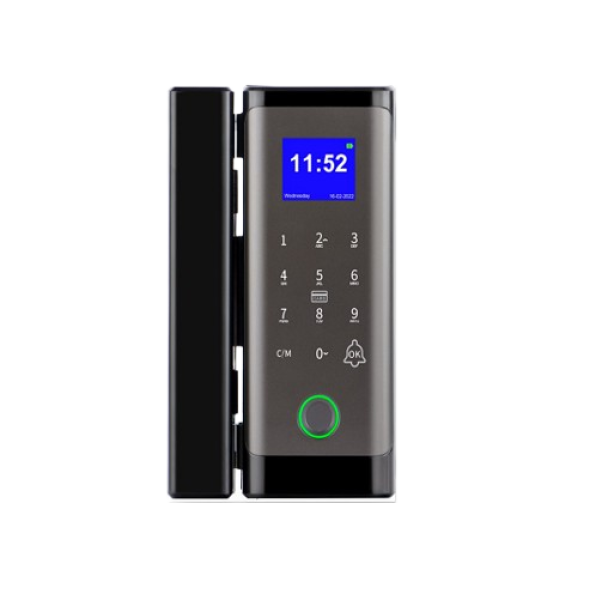

FLG 22
Model No: FLG 22
Frameless or Framed Glass Door Lock with fingerprint
FLG 22
FLG 22 is a frameless or framed glass door lock featuring biometric fingerprint and RFID card access control. Compact and elegant, it is ideal for offices and commercial spaces with glass door installations. Supports Fingerprint, Card, Wireless Remote and Push Button identification modes. Optional battery backup provides security even during power outages.
Specifications
- Fingerprint Capacity: 100
- Card Capacity: 100
- Max. User: 100
- LCD: 1.77" TN Colour Screen
- Voice: 16-bit Hi-Fi voice
- Language: English
- Identification Mode: Finger, Card, Wireless Remote, Push Button
- Battery Backup: Optional
- Battery Type: 4 AA Battery (6V)
- Operating Temperature: 0°C ~ 50°C
- Operating Humidity: 20% - 80% RH
- Power Cable: C type
- Dimension (Main lock): 188 × 83 × 79.5 mm
- Dimension (Side Lock): 188 × 73 × 36.5 mm
- Frame Thickness: 10 mm–12 mm
- Door Gap: 4 mm–10 mm
Technical Specifications
Capacity & Storage
Fingerprint Capacity
3,000
Card Capacity
10,000
Transaction Records
100,000
Connectivity
Communication
TCP/IP, WiFi, USB
Display & Interface
Display
2.8" TFT Color Screen
Biometrics
Verification Speed
< 1 second
Fingerprint Sensor
Optical
Identification Methods
Fingerprint, RFID Card, Password
Power
Power Supply
DC 12V / 3A
Operating Temperature
-10°C to 60°C
Physical
Dimensions
195 × 75 × 42 mm
