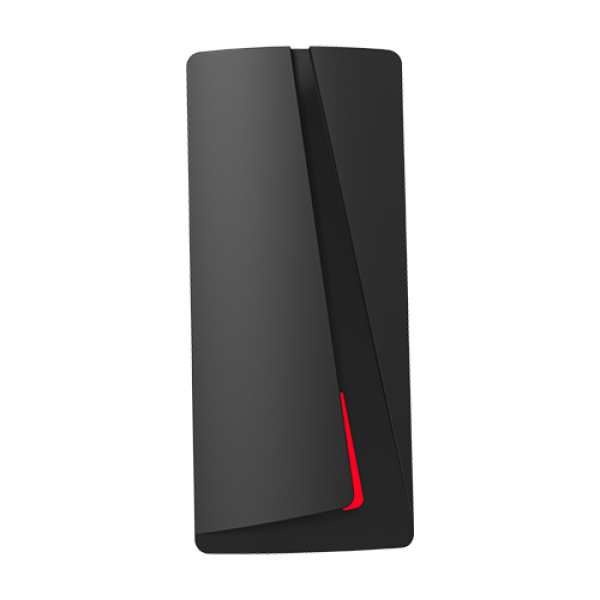

Card Reader KR26M
Model No: KR26M
Mifare RFID reader for access control
Card Reader KR26M
The KR26M is a Mifare 13.56 MHz smart card reader with standard Wiegand 26/34 output for access control integration. Compatible with ISO 14443A cards and BioMax access controllers, it supports read ranges up to 5 cm for convenient contactless authentication. Suitable for offices, hospitals, and commercial building access systems.
Technical Specifications
Connectivity
Frequency
13.56 MHz (Mifare)
Read Range
3–8 cm
Access & Security
Output
Wiegand 26
Power
Operating Voltage
DC 12V
Operating Temperature
-20°C to 70°C
Display & Interface
LED Indicator
Yes + buzzer
Physical
Dimensions
70 × 40 × 12 mm
IP Rating
IP65
