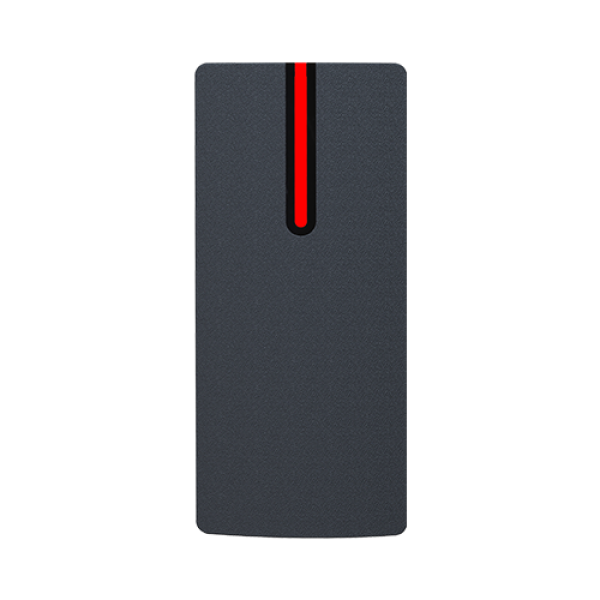

Card Reader KR5E
Model No: KR5E
Compact RFID reader for attendance and access
Card Reader KR5E
The KR5E is an ultra-slim 125 kHz proximity card reader with a low-profile stainless steel faceplate for aesthetically-sensitive installations. With Wiegand 26-bit output and a read range of up to 5 cm, it suits modern corporate offices and hospitality environments where device appearance is as important as function.
Technical Specifications
Connectivity
Frequency
125 kHz (EM4100)
Read Range
3–8 cm
Access & Security
Output
Wiegand 26
Power
Operating Voltage
DC 12V
Operating Temperature
-20°C to 70°C
Display & Interface
LED Indicator
Yes
Physical
Dimensions
55 × 35 × 10 mm
IP Rating
IP64
