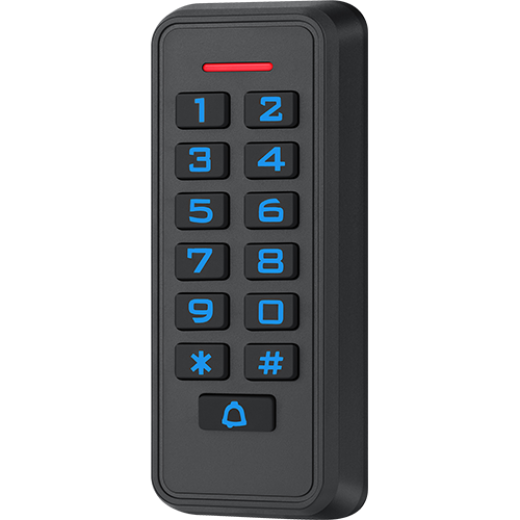

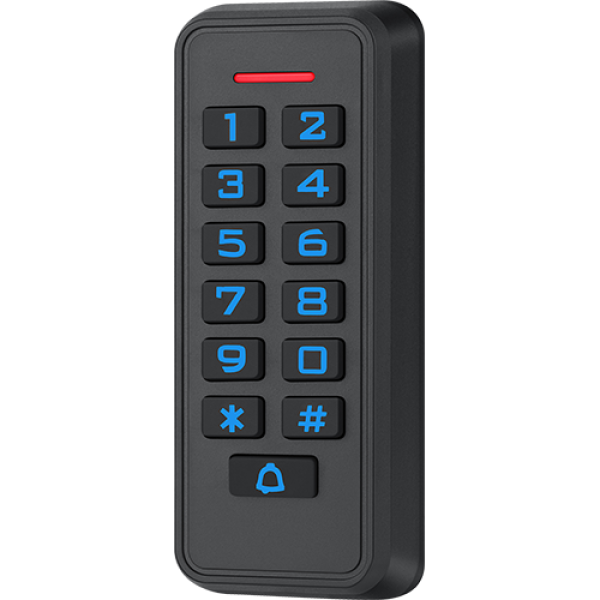

Card Reader KR8EH
Model No: KR8EH
HID RFID card reader for access systems
Card Reader KR8EH
The KR8EH is a combined 125 kHz EM and 13.56 MHz MIFARE dual-technology card reader. Its ability to read both card types makes it ideal for environments transitioning between legacy EM cards and newer MIFARE smart cards. Standard Wiegand output ensures compatibility with all BioMax and third-party access controllers.
Technical Specifications
Connectivity
Frequency
125 kHz (EM4100) + 13.56 MHz (Mifare)
Read Range
3–8 cm
Access & Security
Output
Wiegand 26 / 34
Power
Operating Voltage
DC 12V
Operating Temperature
-20°C to 70°C
Display & Interface
LED Indicator
Yes + buzzer
Physical
Dimensions
80 × 45 × 14 mm
IP Rating
IP65
