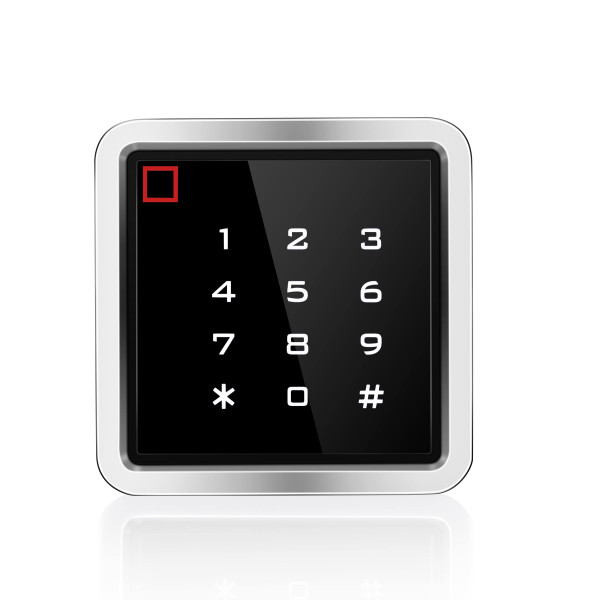

Card Reader SA228
Model No: SA228
RFID card reader with LED indicator
Card Reader SA228
The SA228 is a waterproof outdoor RFID card reader with IP65 protection, supporting 125 kHz proximity cards with Wiegand 26/34 output. Its robust construction handles rain, dust, and temperature extremes, making it suited for outdoor gates, car parks, and industrial facilities where indoor-grade readers cannot be used.
Technical Specifications
Connectivity
Frequency
125 kHz / 13.56 MHz
Read Range
5–10 cm
Access & Security
Output
Wiegand 26 / 34
Power
Operating Voltage
DC 12V
Operating Temperature
-20°C to 70°C
Display & Interface
LED Indicator
Yes + buzzer
Physical
Dimensions
82 × 52 × 16 mm
IP Rating
IP65
