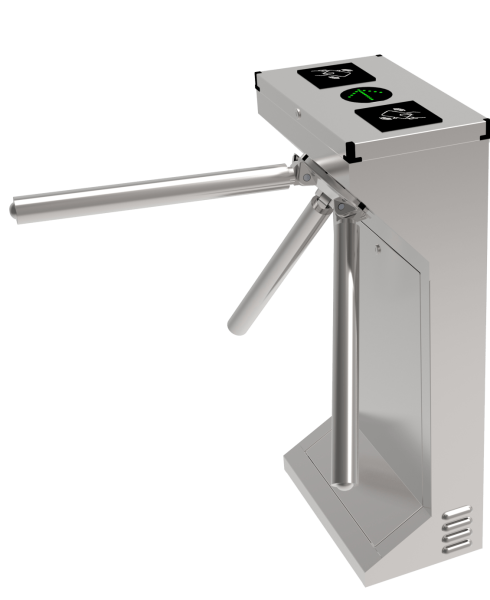

TNS-108 Tripod Turnstile
Model No: TNS-108
Tripod turnstile for pedestrian access control in offices, factories, and public areas. Compatible with BioMax biometric readers.
TNS-108 Tripod Turnstile
The TNS-108 Tripod Turnstile is a mechanically strong and technically reliable pedestrian access control system constructed from stainless steel AISI304/316. It supports multiple operating modes including semi-auto, full-auto, and pure mechanical passage control, with RFID/IC card/barcode identification and emergency arm drop on power failure.
Specifications
- Passage Width: ≥550mm
- Throughput Rate: 35 persons/min
- Power Supply: 100–240V AC
- Operational Voltage: 24V DC
- Max Power Consumption: 35W
- Frequency: 50–60Hz
- Protection Level: IP44
- Working Temperature: -25°C~70°C
- Dimensions (excluding bars): 480×280×960mm
- Net Weight (including bars): 42kg
- Housing: Stainless steel AISI304 or AISI316
- Barrier Arm: Stainless steel bar
- Operating Modes: Single passage, bi-directional single passage, free passage, always free or locked
Technical Specifications
Turnstile & Gate
Passage Width
550 mm
Arm Length
490 mm
Passage Speed
35 persons/min
Power
Power Supply
AC 220V / 50Hz
Power Consumption
30W
Operating Temperature
-10°C to 60°C
Physical
Material
304 Stainless Steel
Dimensions
280 × 1020 × 980 mm
IP Rating
IP54
Connectivity
Communication
Wiegand / RS485
Access & Security
Access Mode
Single direction / Bi-direction
Emergency
Auto opens on power failure
