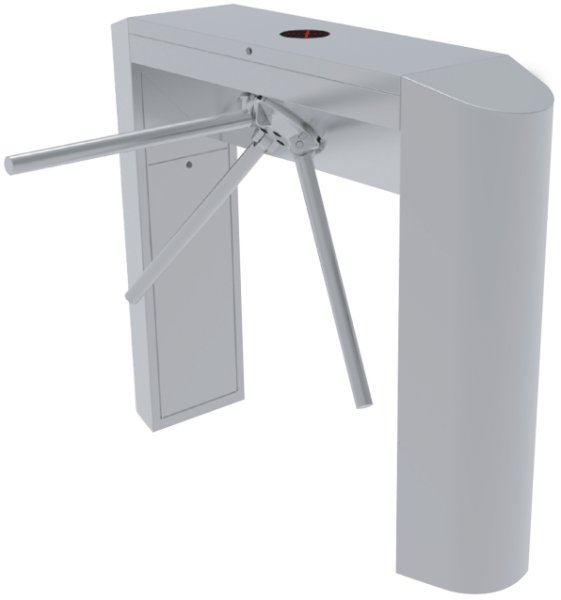

TNS-243 Tripod Turnstile
Model No: TNS-243
Tripod turnstile for high-traffic access control
TNS-243 Tripod Turnstile
The TNS-243 Tripod Turnstile is a robust stainless steel pedestrian access control system designed for commercial and institutional entry points. It integrates with RFID IC cards, ID cards, barcodes, and magnetic cards, with multiple auto and mechanical passage modes and automatic arm drop on power failure for safety.
Specifications
- Passage Width: ≥550mm
- Throughput Rate: 35 persons/min
- Power Supply: 100–240V AC
- Operational Voltage: 24V DC
- Max Power Consumption: 35W
- Frequency: 50–60Hz
- Protection Level: IP44
- Working Temperature: -25°C~70°C
- Dimensions (excluding bars): 1200×280×980mm
- Net Weight (including bars): 35kg
- Housing: Stainless steel AISI304 or AISI316
- Barrier Arm: Stainless steel bar
- Operating Modes: Single passage, bi-directional single passage, free passage, always free or locked
Technical Specifications
Turnstile & Gate
Passage Width
600 mm
Arm Length
520 mm
Passage Speed
40 persons/min
Power
Power Supply
AC 220V / 50Hz
Power Consumption
40W
Operating Temperature
-10°C to 60°C
Physical
Material
304 Stainless Steel
Dimensions
300 × 1050 × 1000 mm
IP Rating
IP54
Connectivity
Communication
Wiegand / RS485
Access & Security
Access Mode
Bi-direction
Emergency
Auto opens on power failure
