Mechanically strong as well as technically more reliable.
turnstile system that manages manual and authorized passage through the area.

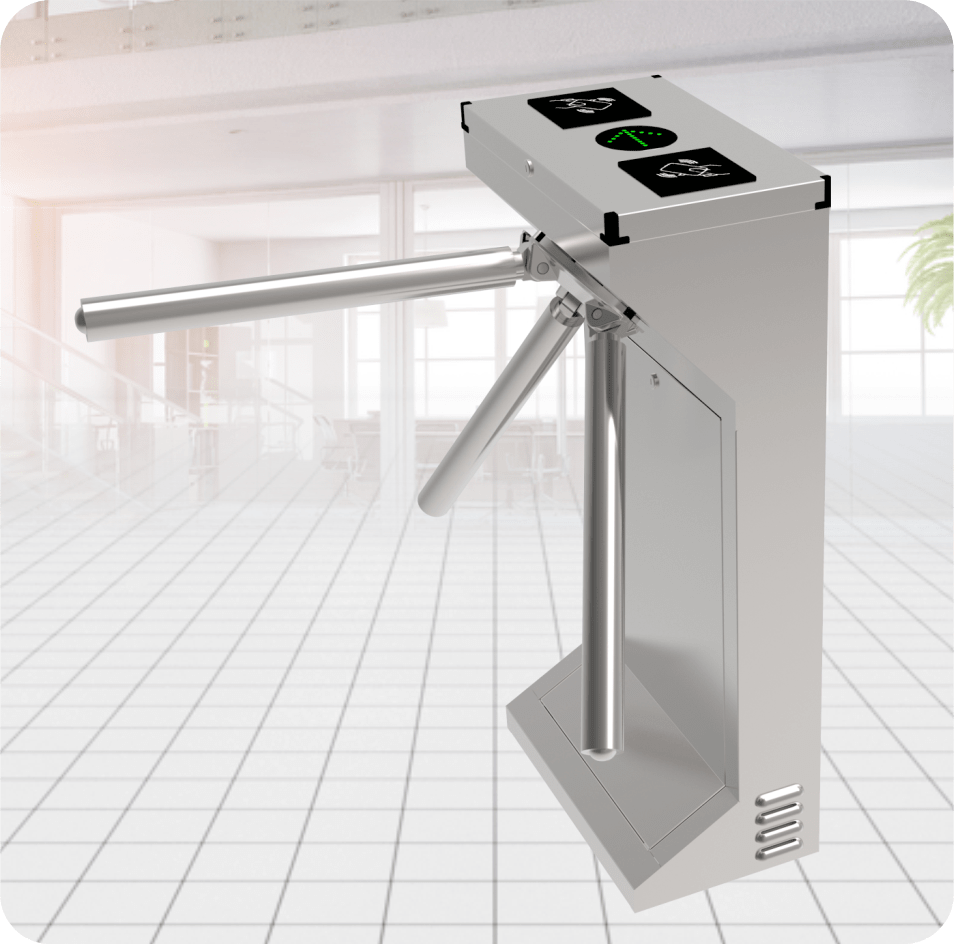

TNS-108 Tripod Turnstile

Technical Features

Passage width : ≥ 550 mm

Throughput rate : 35 p/m

Power Supply : 100-240 V/(ac)

Operational Voltage : 24 V/(dc)

Max Power Consumption : 35 W

Frequency : 50-60 hz

Prectection level >44 IP

Working Temperature : -25° ~ 70°

Dimension excluding bars : 480 * 280 * 960 mm

Net weight including bars : 42 kg



Housing : In stainless steel AISI304 or AISI316 Barrier arm-stainless steel bar


Single passage in the set direction

Bi-directional single passage

Free passage in the set direction

Always free or locked

About Us

TNS-108 Tripod Turnstile
Features & Benefits

• Use of RFID IC card, ID cards, Barcode or magnet- ic cards as automatic identi􀃶cation system and achieve access attendance , fees or function.

• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage

• Semi-auto mode: After reading card the passenger pushes the arm arrives in home position.

• Full-auto mode: The passenger pushes the arm at a little strength after reading card,and the arm will auto-matically rotate forward by motor power until the arm arrives in home position.

• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.

• Single or bi-directional function in mechanical and electrical versions.

• Automatic reset of barrier arms after each passage.

• Cable or wireless remote control panel key override control for emergency situations .

• Automatically arm drop down when power off or emergency.

• Adjustable time out delay.




Connection Diagram
