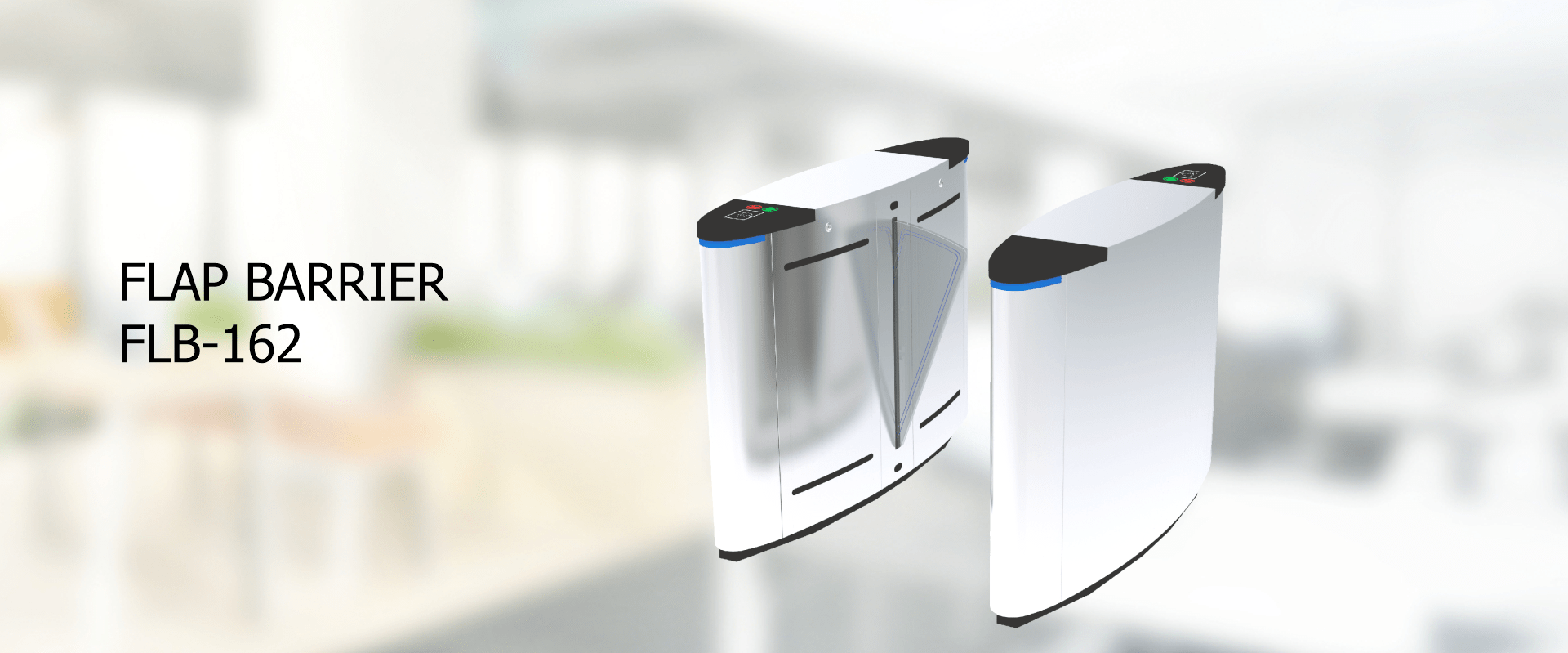

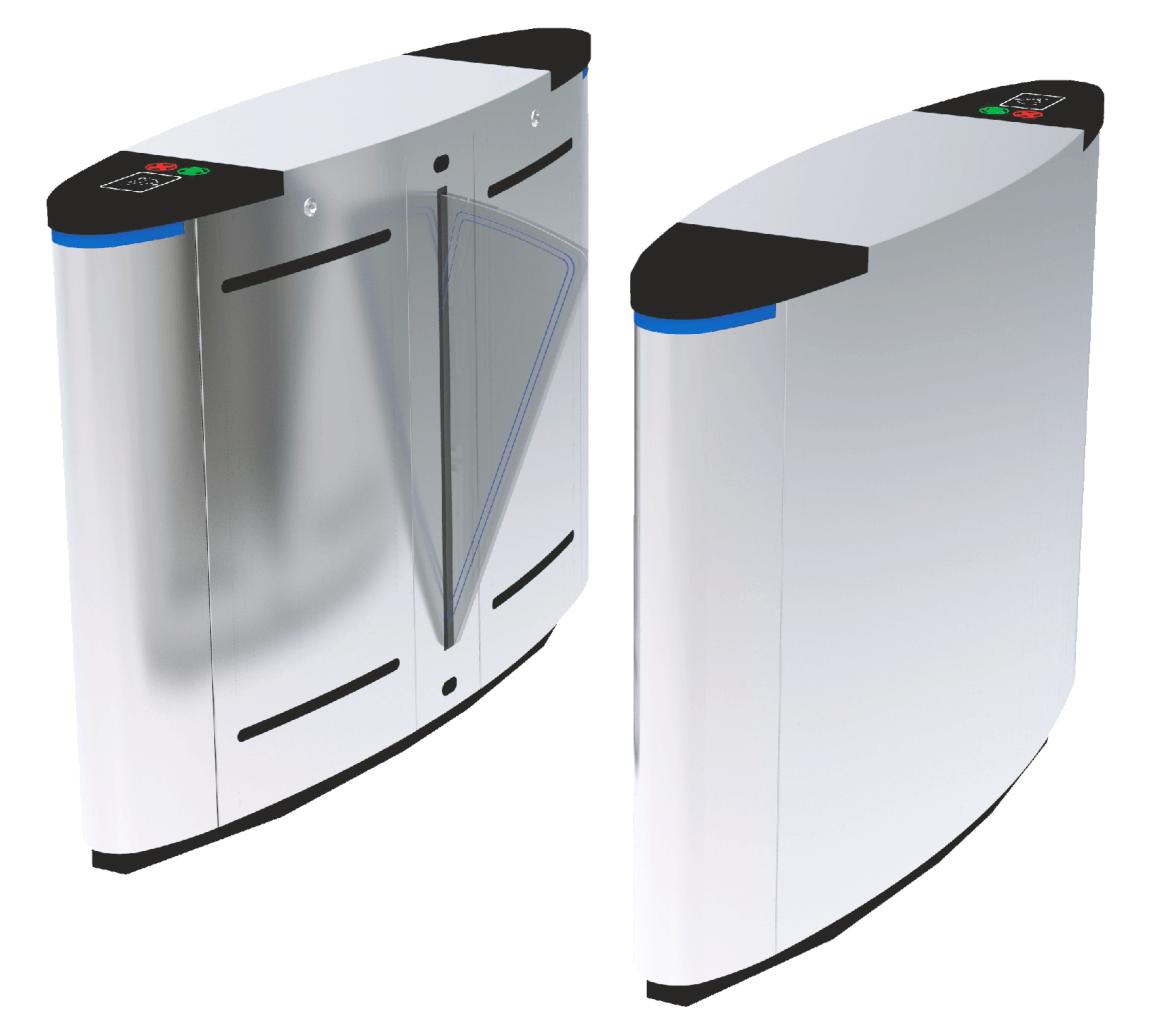

Mechanically advance and technically ultimate. Flap Barrier system to control as well as manage the manual and authorized passage through the area.



Technical Features

Passage width : ≥ 550 mm

Throughput rate : 35 p/m

Power Supply : 100-240 V/(ac)

Operational Voltage : 24 V/(dc)

Max Power Consumption : 35 W

Frequency : 50-60 hz

Prectection level >44 IP

Working Temperature : -25° ~ 70°

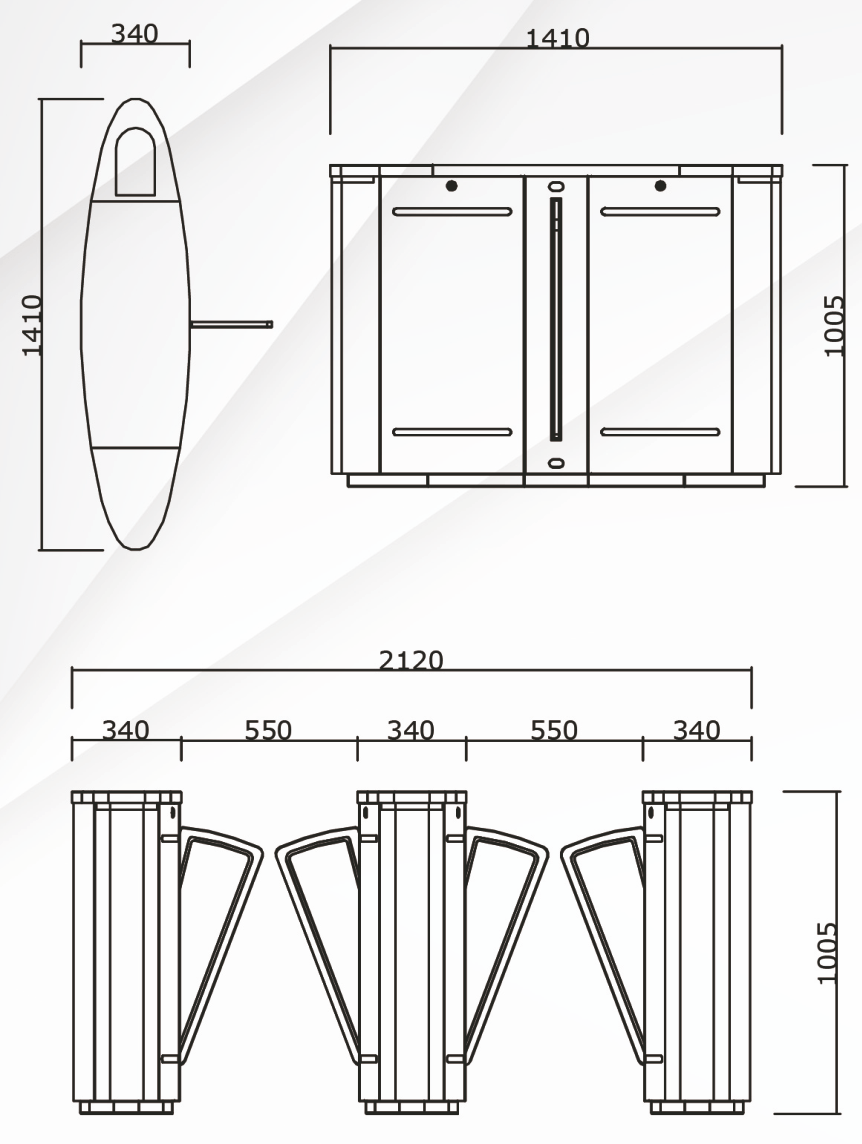

Dimension excluding bars : 1410 x 340 x 1005 mm

Net weight including bars : 75 kg



Housing : In stainless steel AISI304 or AISI316

Barrier swings-acrylic, PC, stainless steel frame

Operating Modes

Single passage in the set direction

Bi-directional single passage

Free passage in the set direction

Always free or locked

About Us

Features & Benefits

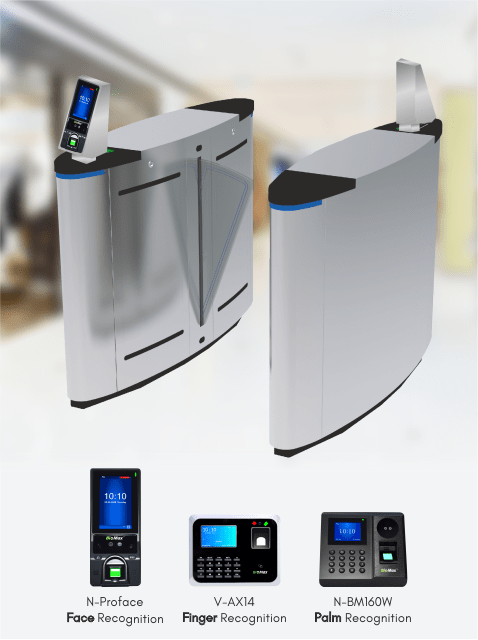

• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function.

• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage

• Display has been in use for statistics and numbers

• With voice and strobe light alerts

• A combination of infrared sensors and police antillegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following

• Double anti-clipping function , photocell antic lipping and mechanical anti-clipping

• Auto reset function, if no passing during identified card reading time, the system will reset automatically the passengers are prohibited to pass until their second identifies reading

• The barrier can be set to delay closing in 1-60s after a valid card reading




Connection Diagram
