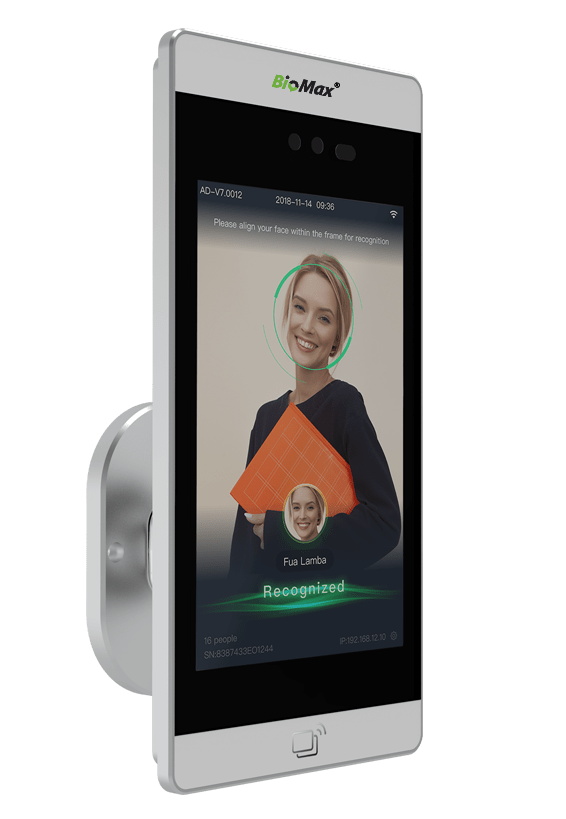

AI Face Recognition Terminal
Speed Face 8 TM is the face recognition product with high performance and high reliability, which depends on the deep learning algorithm, also having the characteristics of quick recognition speed and high accuracy. This product supports 1:1 and 1:N mode.
based on the person's facial texture, shape and movement.

Product

Face Recognition Terminal

Functions

Face Capacity : 1,00,000

Max User : 1,00,000

Logs Capacity : 10,00,000

Accuracy : 99.27%

Living body detection : Support

Sensor : IR array Sensor

Stranger detection : Support

Recognition distance configuration : Support

UI interface configuration : Support

Remote update : Support

Deployment : Public network, LAN

Display

Display screen : 8-inch IPS all-sight LCD touch screen

Resolution : 800 * 1280

System parameters

Operating system : Linux

CPU : Dual-core ARM Cortex-a7@900MHz

Product

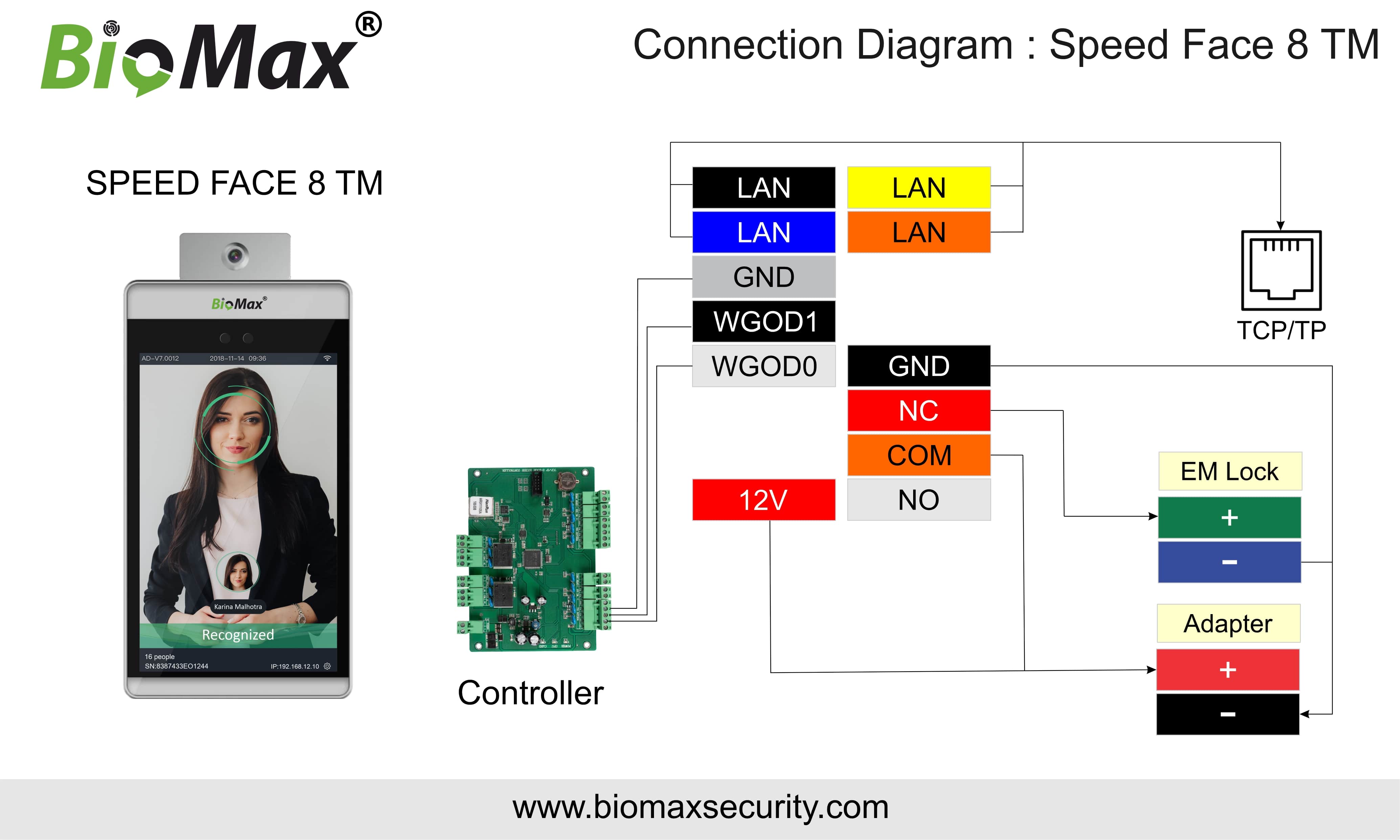

Interfaces

Relay output : 1-way (DOOR_NO, DOOR_COM, DOOR_NC)

Network interface : 1-way Ethernet (RJ45, 100M)

TTL serial port : Embedded with our card plate

Wi-Fi : Standard: IEEE 802.11b/g/n

Wiegand Output : Yes

Reset interface : Reset button

USB interface : 1-way Type-A

General parameters

Power : DC 12V/2A

Device Working Temp. : -10°C~50°C

Environment for Temp. Measurement : 22°C ~ 32°C

Temp. Measurement Distance : 30cm~50cm

Temp. Measurement Range : 35.5°C~42°C (95.9°F~107.6°F)

Working humidity : 10%~90%

Dimension 300 * 130 * 90 mm
