Perfect solution to your Multibio attendance needs


Product

N-Bio101 W

A Better for the Best Model - Face detection, Fingerprint & RFID card forming Multi Verification model for the advancement of the User, perfect solution for Multi bio attendance needs features. This device can easily be placed on top of the table, easy to install on wall and integration with turnstile. Finely crafted a shining black body along with grey edges, this device have feather touch keypad for a mesmerizing experience.This model has feather touch keypad for convenient user interaction. Hoping for a lag free user experience, this embedded LINUX based processor powers the device for smoother than butter operations. Never lags and adequate power from within to boost up everyday process. Double the Power of Detection with -- Auto locate the face of the user without under normal as well as low light scenarios. Fingerprint Sensor made from our very own classy technology, it will leave the users star struck when it will easily sense and verify fingers with ink stain or mehndi finger. Adapt seamless Communication, we have the Wireless connectivity as well as LAN but if you are worried about Internet in Remote Areas, Behold the power of 4G GPRS connectivity. It uses 4G Sim Card to push the attendance data from device to your software. Using USB we can upload and download users and logs from device.

Normal User, Admin, and Super-admin roles can be created to have a control over any unauthorized person manipulating the device setiings. Alpha numeric Employee code for the flexibility in the name and identity value for the user. For usage in absence of power supply you can add external battery which can work as a power source. Lock your Premises, use it as Access Control to permit the entry and exit of the room. N-Bio101 supports Rs485 reader, Wiegand Reader, Remote Push Button, No Touch and many more exit side accessories.

Face Detection

Advance Finger

RFID Card Detection

Access Control

WiFi Connectivity

LAN Connectivity

USB Connectivity

Battery (Optional)

Multi-Bio Time Attendance and Access Control System

Storage Capacity

Face Capacity : 2000

Finger Capacity : 5000

Card Capacity: 2000

Log Capacity : 1,50,000

Password Capacity : 3000

Max. User : 2000

Processor : 1GHz

Communication

TCP/IP, Wi-Fi, RS485, USB Host & Client

Push Data : Yes

OS : Linux

4G GPRS / GPS : Yes (Optional)

Audio/Visual

Display : 2.8'’ IPS LCD color screen

Voice instruction : 16-bit Hi-Fi voice & sound indication

Language : English

Product

Biometric

FAR : 0.01%

FRR : 0.001%

Sensor type : 500 DPI

Identification Mode : Face, Fingerprint, Card, PIN

Access Control

Wiegand : Input / Output

Relay : Yes

Support : N-FR12, KR26E, Remote, Push Button, No Touch

Power & Environment

Battery : Optional

Operating Temperature : 0°c ~ 50°c

Power : 12V DC / 2A

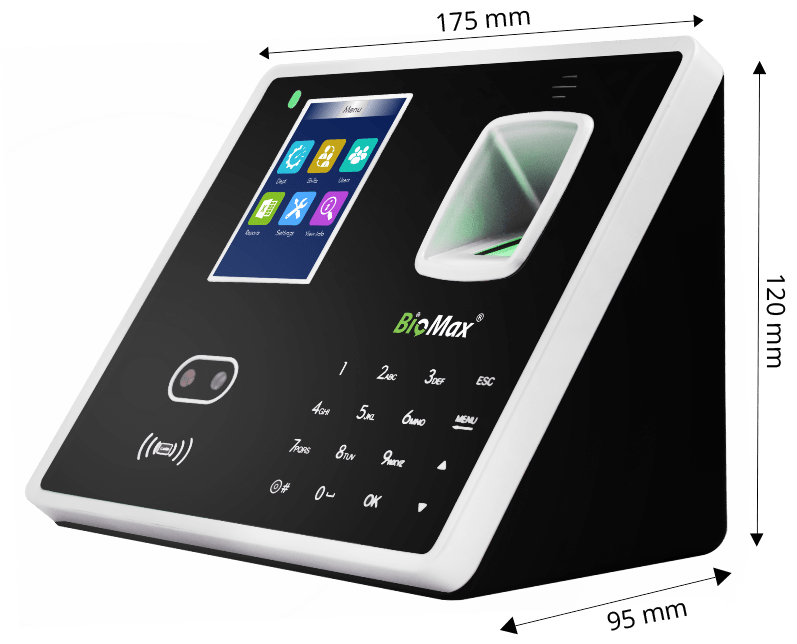

Dimension (L*H*W) : 175 x 120 x 95 mm
