N-BM70W Pro focus on the concept of unique features to give a gratifying experience.
Moreover the design with an edgy look makes it a head turner.
Accurate face verification that doesnt compromise in the matter of distance or light.



Product

N-BM70W Pro

Created for startups or offices with less number of employees that requires Facial Recognition system. N-BM70W Pro holds a grip as an entry level model in the world of Biometrics. It gives you the freedom to use multiple mode of verification like Password + Face/fingerprint, Face/Fingerprint/Card (RFID), Card + Face/Fingerprint for better Security. N-BM70W Pro gives you 2.8’’ inch Color display for better visuality and easy access. As this device covers all Face, Fingerprint as well as RFID function we fitted a spectacular processor that provides up to the mark speed and error free calculations. N-BM70W Pro has been powered by Linux OS that makes it user friendly. In N-BM70W Pro connect desktop while using Web and Cloud Software too. You can use the powerful trio of WiFi Connectivity, LAN connectivity for communication with the software and also USB connectivity. An impressive Camera that can verify user even in compromised lighting conditions. Our latest advancement Fingerprint Sensor specially built for verifying ink, mehndi or any color, even rough, dry fingers too. N-BM70W Pro have USB port for getting log, Report and employee detail in USB drive that means you can get report/data in remote location. BM 70 W Pro gives you inbuilt battery. That means you get some extra time to use the device in absence of electricity. Lock your Premises: Use it as Access Control to permit the entry and exit of the room. It is compatible with Exit Switch, Wireless Remote as well as No Touch Sensor. BM70 Pro is a good to go model for your office, playgroups, etc where a limited numbers of users are there.

Face Detection

Advance Finger

RFID Card Detection

Access Control

WiFi Connectivity

LAN Connectivity

USB Connectivity

Inbuilt Battery

Multi-Bio Time Attendance and Access Control System

Storage Capacity

Face Capacity : 500 (1: N)

Finger Capacity : 2000

Card Capacity: 2000

Max. User : 2000

Log Capacity : 1,50,000

Communication

Wi-Fi, TCP/IP, USB Host

Push Data : Yes

Audio/Visual

LCD : 2.8'’ TFT color screen

LED Indicator : Green/Red

LED for day night vision : Array LED

Voice instruction : 16-bit Hi-Fi voice & sound indication

Language : English

Product

Biometric

FAR : 0.00001%

FRR : 0.001%

Sensor type : 500 DPI

OS : Linux

Verification Time : <1second

Identification Mode : Face, Fingerprint, Card, PIN

Access Control

Support : Remote, Push Button, No Touch

Relay : Yes

Power & Environment

Inbuilt Battery Backup : YES (BIS standard)

Operating Temperature : 0°c ~ 50°c

Power : 12V 2Am (BIS standard)

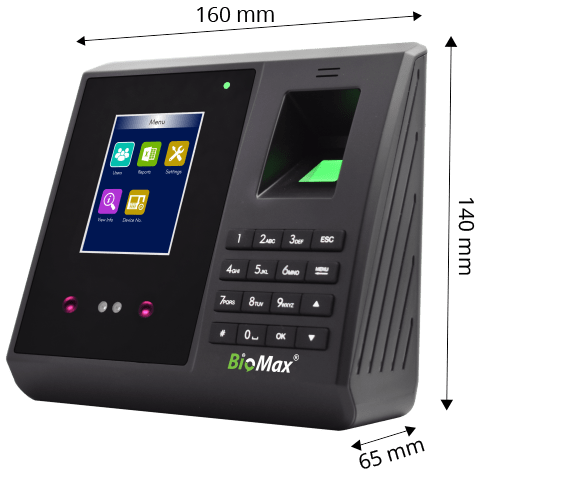

Dimension (L*H*W) : 160 x 140 x 65 mm

Paris

Manual

Paris

Device Introduction
